| Key | Diameter (mm) | Diameter (in) | Width (mm) | Height (mm) | Bar spacing (mm) | Length (mm) |
|---|---|---|---|---|---|---|
| JB-12 | 12 | 1/2" | 300 | 150 | 300 | 3000 |
| JB-16 | 16 | 5/8" | 300 | 150 | 300 | 3000 |
| JB-19 | 19 | 3/4" | 300 | 150 | 300 | 3000 |
| JB-22 | 22 | 7/8" | 300 | 150 | 300 | 3000 |
| JB-25 | 25 | 1" | 300 | 150 | 300 | 3000 |
Description

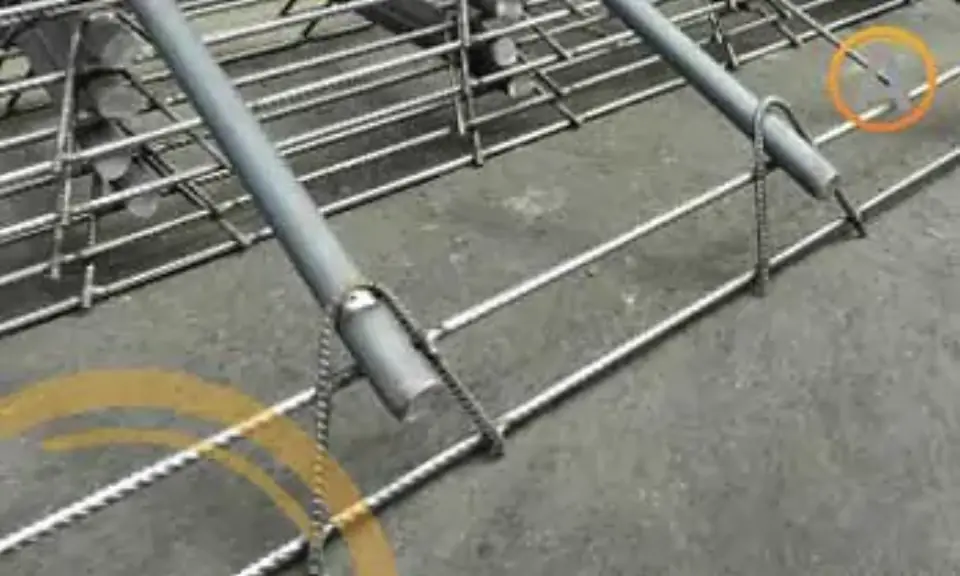

Joint baskets for contraction joints in hydraulic concrete slabs, designed to transfer loads and control cracking. Manufactured from round carbon steel bars welded to support frames.
Presentation
- Standard length: 3000 mm (3 m).
- Available in different bar diameters (12 to 25 mm).
- Custom manufacturing available on request.
Uses
- Industrial concrete floors
- Truck yards and rigid pavements
- Contraction and expansion joints in slabs
- Uniform load transfer across joints
Features
- High-strength carbon steel.
- Easy installation and alignment on site.
- Reduces cracking and ensures load transfer between slabs.
- Special fabrication upon request.
