| Material | Cutting range | Typical tolerance | Process detail |
|---|---|---|---|
| Carbon steel | 24 ga to 3/4 in | +/-0.15 mm to +/-0.40 mm | Excellent edge quality for precision components |
| Stainless steel | 24 ga to 1/2 in | +/-0.15 mm to +/-0.35 mm | Clean finish for visible parts and close-fit assemblies |
| Aluminum | 24 ga to 3/8 in | +/-0.20 mm to +/-0.40 mm | Good performance on light parts and custom developments |
| Holes / details | Depends on thickness | Recommended minimum diameter 0.8x to 1x thickness | Ideal for complex geometry, slots and repeated patterns |
Description

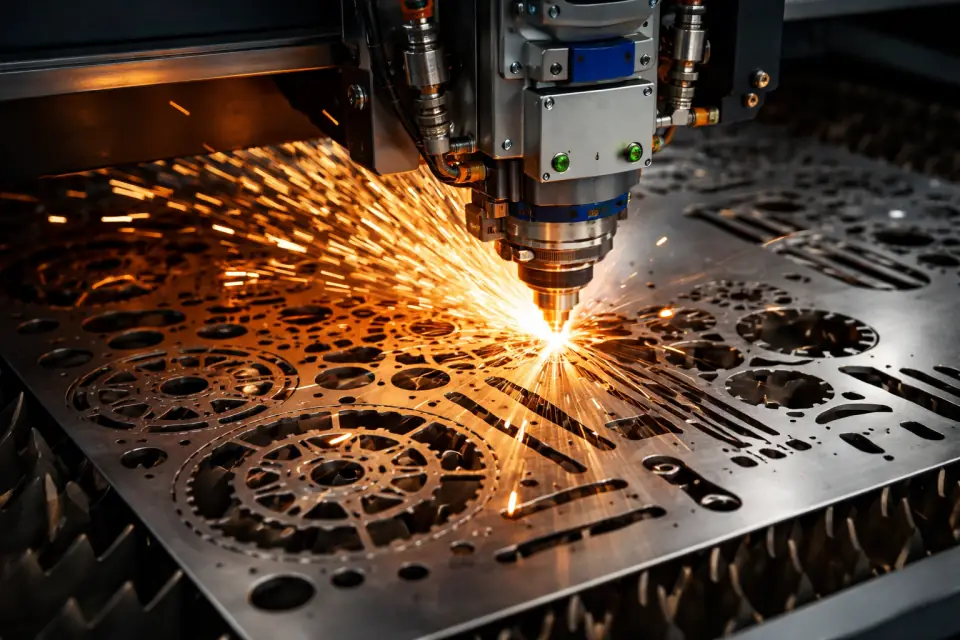

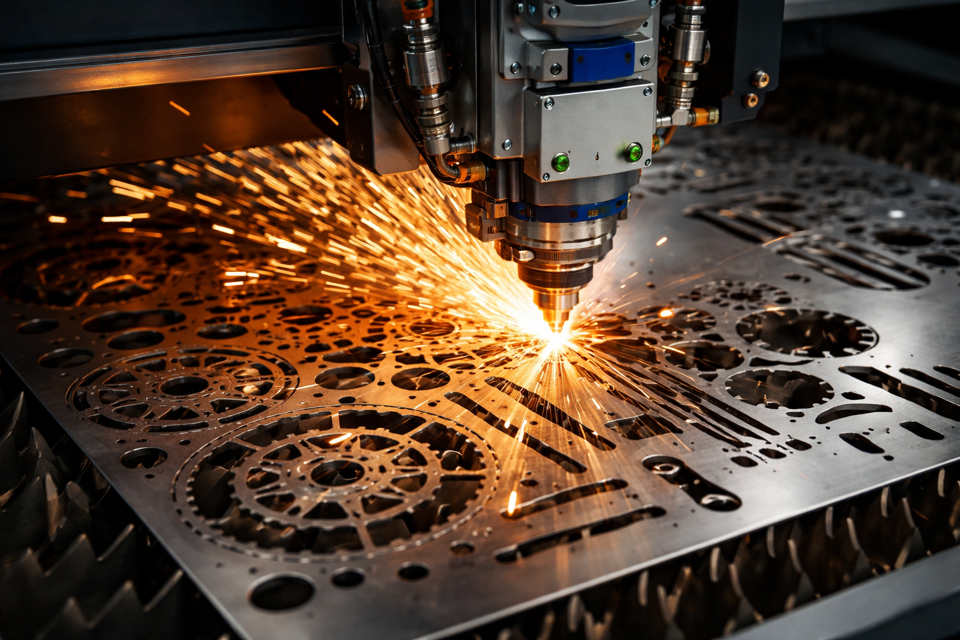

CNC laser cutting service for carbon steel, stainless steel and aluminum, with cutting capacity from 24 gauge up to 3/4 in. Ideal for high-precision parts, short runs and repeat production with excellent edge finish.
Presentation
- Cutting range from 24 gauge to 3/4 in, depending on material and geometry.
- We process parts from customer DXF/DWG files or custom development.
- Clean cuts ready for bending, welding, painting or assembly.
- Suitable for prototypes, production lots and spare parts.
Uses
- Precision plates, brackets and fabricated components.
- Cabinets, light structures and fine metalwork parts.
- Spare parts, templates and custom developments.
- Repeat production with consistent tolerances.
Features
- High dimensional accuracy and excellent repeatability.
- Lower heat-affected zone than more aggressive thermal processes.
- Optimized material usage through CNC nesting.
- Excellent edge quality that reduces secondary operations.
Information
CNC laser cutting produces repeatable parts with complex geometry and clean edges. We review the file, material, thickness, tolerances, quantity and subsequent operations before recommending the process.
What to consider
- Provide a scale DXF or DWG without duplicate or open lines.
- Define material, thickness, quantity and critical tolerances.
- State whether parts will be bent, welded, painted or assembled.
Service and delivery
The service is quoted in General Escobedo and delivery is coordinated according to material, volume and destination.
