| Espesor (in) | Anchos (in) | Espesor (mm) | Anchos (mm) | Peso (kg/m) | Peso (lb/pie) |
|---|---|---|---|---|---|
| cal.12 (.109") | 1 | 2.77 | 25.4 | 1.06 | 0.71 |
| 1 1/4 | 31.75 | 1.32 | 0.89 | ||
| 1 1/2 | 38.1 | 1.61 | 1.08 | ||
| 1/8 | 3/4 | 3.18 | 19.05 | 0.88 | 0.59 |
| 1 | 25.4 | 1.19 | 0.8 | ||
| 1 1/4 | 31.75 | 1.5 | 1.01 | ||
| 1 1/2 | 38.1 | 1.83 | 1.23 | ||
| 1 3/4 | 44.45 | 2.14 | 1.44 | ||
| 2 | 50.8 | 2.46 | 1.65 | ||
| 5/32 | 1 1/2 | 3.97 | 38.1 | 2.26 | 1.52 |
| 2 | 50.8 | 3.04 | 2.04 | ||
| 3/16 | 1 | 4.76 | 25.4 | 1.73 | 1.16 |
| 1 1/4 | 31.75 | 2.2 | 1.48 | ||
| 1 1/2 | 38.1 | 2.68 | 1.8 | ||
| 1 3/4 | 44.45 | 3.15 | 2.12 | ||
| 2 | 50.8 | 3.63 | 2.44 | ||
| 2 1/2 | 63.5 | 4.57 | 3.07 | ||
| 3 | 76.2 | 5.52 | 3.71 | ||
| 1/4 | 1" | 6.35 | 25.4 | 2.22 | 1.49 |
| 1 1/4 | 31.75 | 2.86 | 1.92 | ||
| 1 1/2 | 38.1 | 3.48 | 2.34 | ||
| 1 3/4 | 44.45 | 4.12 | 2.77 | ||
| 2 | 50.8 | 4.75 | 3.19 | ||
| 2 1/2 | 63.5 | 6.1 | 4.1 | ||
| 3 | 76.2 | 7.29 | 4.9 | ||
| 3 1/2 | 88.9 | 8.63 | 5.8 | ||
| 4 | 101.6 | 9.82 | 6.6 | ||
| 5/16 | 2 | 7.94 | 50.8 | 5.83 | 3.92 |
| 2 1/2 | 63.5 | 7.44 | 5 | ||
| 3 | 76.2 | 9.08 | 6.1 | ||
| 3 1/2 | 88.9 | 10.71 | 7.2 | ||
| 4 | 101.6 | 12.2 | 8.2 | ||
| 5 | 127 | 15.3 | 10.3 | ||
| 6 | 152.4 | 18.45 | 12.4 | ||
| 3/8 | 2 | 9.53 | 50.8 | 6.99 | 4.7 |
| 2 1/2 | 63.5 | 8.78 | 5.9 | ||
| 3 | 76.2 | 10.71 | 7.2 | ||
| 3 1/2 | 88.9 | 12.64 | 8.5 | ||
| 4 | 101.6 | 14.58 | 9.8 | ||
| 5 | 127 | 18.3 | 12.3 | ||
| 6 | 152.4 | 22.17 | 14.9 | ||
| 7/16 | 4 | 11.11 | 101.6 | 16.8 | 11.3 |
| 5 | 127 | 21.3 | 14.3 | ||
| 6 | 152 | 25.6 | 17.2 | ||
| 1/2 | 3 | 12.70 | 76.2 | 13.99 | 9.4 |
| 4 | 101.6 | 19.05 | 12.8 | ||
| 5 | 127 | 24.11 | 16.2 | ||
| 6 | 152.4 | 29.17 | 19.6 | ||
| 8 | 203 | 39.3 | 26.4 | ||
| 9/16 | 8 | 14.29 | 203.2 | 44.05 | 29.6 |
| 5/8 | 4 | 15.88 | 101.6 | 23.36 | 15.7 |
| 6 | 152.4 | 36.01 | 24.2 | ||
| 8 | 203.2 | 48.66 | 32.7 | ||
| 3/4 | 5 | 19.05 | 127 | 35.12 | 23.6 |
| 6 | 152.4 | 42.71 | 28.7 | ||
| 8 | 203.2 | 57.89 | 38.9 | ||
| 7/8 | 8 | 22.23 | 203 | 66.97 | 45 |
| 1 | 6 | 25.40 | 152.4 | 55.66 | 37.4 |
| 8 | 203 | 75.9 | 51 | ||
| 1 1/8" | 8" | 28.56 | 203 | 84.68 | 56.9 |
Descripción

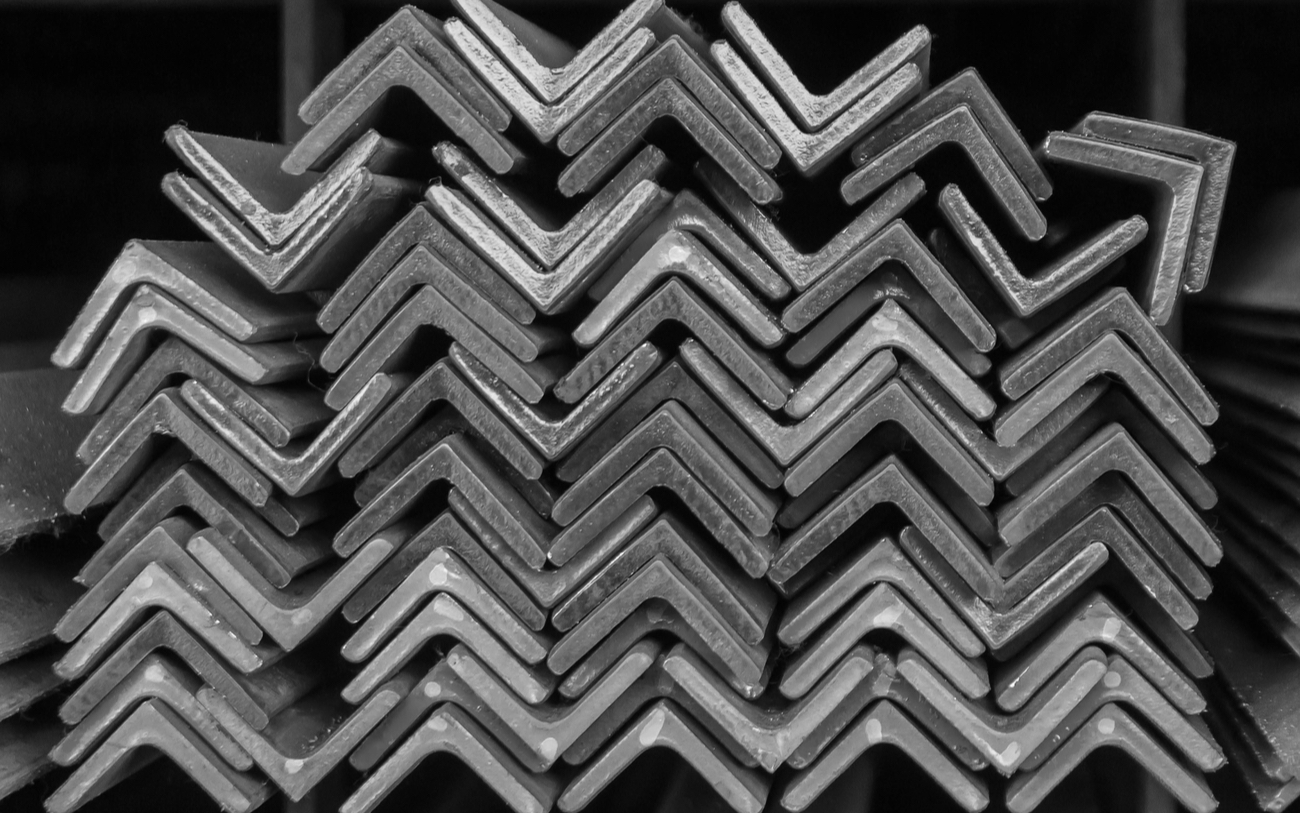

Ángulos de acero al carbón laminados en caliente, lados iguales, grado ASTM A‑36 (dual A‑36/A‑572‑50 disponible bajo pedido). Ideales para fabricar marcos, refuerzos y todo tipo de estructuras metálicas.
Presentación
- Largos estándar: 6.10 m (20 ft) y 12.20 m (40 ft).
- Corte a la medida y perforado CNC opcional.
Usos
- Columnas y vigas ligeras
- Refuerzos de losa y losacero
- Marcos, soportes y estanterías
- Elementos de herrería arquitectónica
Caracteristicas
- Lados y espesores calibrados para un ensamble preciso
- Excelente soldabilidad y maquinabilidad
- Compatibilidad con galvanizado y pintura industrial
