| Espesor (in) | Anchos (in) | Espesor (mm) | Anchos (mm) | Peso (kg/m) | Peso (lb/pie) |
|---|---|---|---|---|---|
| 1/8 | 1/2 | 3.2 | 12.7 | 0.31 | 0.21 |
| 3/4 | 19.1 | 0.47 | 0.32 | ||
| 1 | 25.4 | 0.63 | 0.43 | ||
| 1 1/4 | 31.7 | 0.79 | 0.53 | ||
| 1 1/2 | 38.1 | 0.95 | 0.64 | ||
| 2 | 50.8 | 1.26 | 0.85 | ||
| 3/16 | 1/2 | 4.8 | 12.7 | 0.47 | 0.32 |
| 3/4 | 19.1 | 0.71 | 0.48 | ||
| 1 | 25.4 | 0.94 | 0.64 | ||
| 1 1/4 | 31.7 | 1.18 | 0.8 | ||
| 1 1/2 | 38.1 | 1.42 | 0.96 | ||
| 2 | 50.8 | 1.9 | 1.28 | ||
| 2 1/2 | 63.5 | 1.9 | 1.6 | ||
| 1/4 | 1/2 | 6.3 | 12.7 | 0.63 | 0.43 |
| 3/4 | 19.1 | 0.95 | 0.64 | ||
| 1 | 25.4 | 1.26 | 0.85 | ||
| 1 1/4 | 31.7 | 1.58 | 1.06 | ||
| 1 1/2 | 38.1 | 1.9 | 1.28 | ||
| 2 | 50.8 | 2.53 | 1.7 | ||
| 2 1/2 | 63.5 | 3.17 | 2.13 | ||
| 3 | 76.2 | 3.79 | 2.55 | ||
| 4 | 101.6 | 5.06 | 3.4 | ||
| 5 | 127 | 6.32 | 4.25 | ||
| 6 | 152.4 | 7.59 | 5.1 | ||
| 8 | 203.2 | 10.12 | 6.8 | ||
| 10 | 254 | 12.65 | 8.5 | ||
| 12 | 304.8 | 15.18 | 10.2 | ||
| 5/16 | 1 | 7.9 | 25.4 | 1.58 | 1.06 |
| 1 1/2 | 38.1 | 2.37 | 1.59 | ||
| 2 | 50.8 | 3.16 | 2.13 | ||
| 2 1/2 | 63.5 | 3.95 | 2.66 | ||
| 3 | 76.2 | 4.79 | 3.22 | ||
| 4 | 101.6 | 6.32 | 4.25 | ||
| 5 | 127 | 7.9 | 5.31 | ||
| 6 | 152.4 | 9.49 | 6.38 | ||
| 3/8 | 1 | 9.5 | 25.4 | 1.9 | 1.28 |
| 1 1/4 | 31.7 | 2.37 | 1.59 | ||
| 1 1/2 | 38.1 | 2.84 | 1.91 | ||
| 2 | 50.8 | 3.79 | 2.55 | ||
| 2 1/2 | 63.5 | 4.74 | 3.19 | ||
| 3 | 76.2 | 5.69 | 3.83 | ||
| 4 | 101.6 | 7.59 | 5.1 | ||
| 5 | 127 | 9.49 | 6.38 | ||
| 6 | 152.4 | 11.38 | 7.65 | ||
| 8 | 203.2 | 15.19 | 10.21 | ||
| 10 | 254 | 18.99 | 12.76 | ||
| 12 | 304.8 | 22.78 | 15.31 | ||
| 1/2 | 1 | 12.7 | 25.4 | 2.53 | 1.7 |
| 1 1/2 | 38.1 | 3.81 | 2.56 | ||
| 2 | 50.8 | 5.06 | 3.4 | ||
| 2 1/2 | 63.5 | 6.32 | 4.25 | ||
| 3 | 76.2 | 7.59 | 5.1 | ||
| 4 | 101.6 | 10.12 | 6.8 | ||
| 5 | 127 | 12.65 | 8.5 | ||
| 6 | 152.4 | 15.18 | 10.2 | ||
| 8 | 203.2 | 20.25 | 13.61 | ||
| 10 | 254 | 25.31 | 17.01 | ||
| 12 | 304.8 | 30.39 | 20.42 | ||
| 5/8 | 3 | 15.9 | 76.2 | 9.49 | 6.38 |
| 4 | 101.6 | 12.65 | 8.5 | ||
| 5 | 127 | 15.81 | 10.63 | ||
| 6 | 152.4 | 18.97 | 12.75 | ||
| 8 | 203.2 | 25.31 | 17.01 | ||
| 9 | 228.6 | 28.47 | 19.13 | ||
| 10 | 254 | 31.65 | 21.27 | ||
| 12 | 304.8 | 37.99 | 25.53 | ||
| 3/4 | 1 1/2 | 19.05 | 38.1 | 5.7 | 3.83 |
| 2 | 50.8 | 7.59 | 5.1 | ||
| 2 1/2 | 63.5 | 9.49 | 6.38 | ||
| 3 | 76.2 | 11.39 | 7.65 | ||
| 4 | 101.6 | 15.18 | 10.2 | ||
| 5 | 127 | 18.98 | 12.75 | ||
| 6 | 152.4 | 22.77 | 15.3 | ||
| 8 | 203.2 | 30.38 | 20.41 | ||
| 9 | 228.6 | 34.16 | 22.96 | ||
| 10 | 254 | 37.98 | 25.52 | ||
| 12 | 304.8 | 45.57 | 30.62 | ||
| 1 | 2 | 25.4 | 50.8 | 10.12 | 6.8 |
| 3 | 76.2 | 15.18 | 10.2 | ||
| 4 | 101.6 | 20.24 | 13.6 | ||
| 5 | 127 | 25.31 | 17 | ||
| 6 | 152.4 | 30.37 | 20.41 | ||
| 8 | 203.2 | 40.49 | 27.21 | ||
| 10 | 254 | 50.64 | 34.03 | ||
| 12 | 304.8 | 60.76 | 40.83 |
Descripción

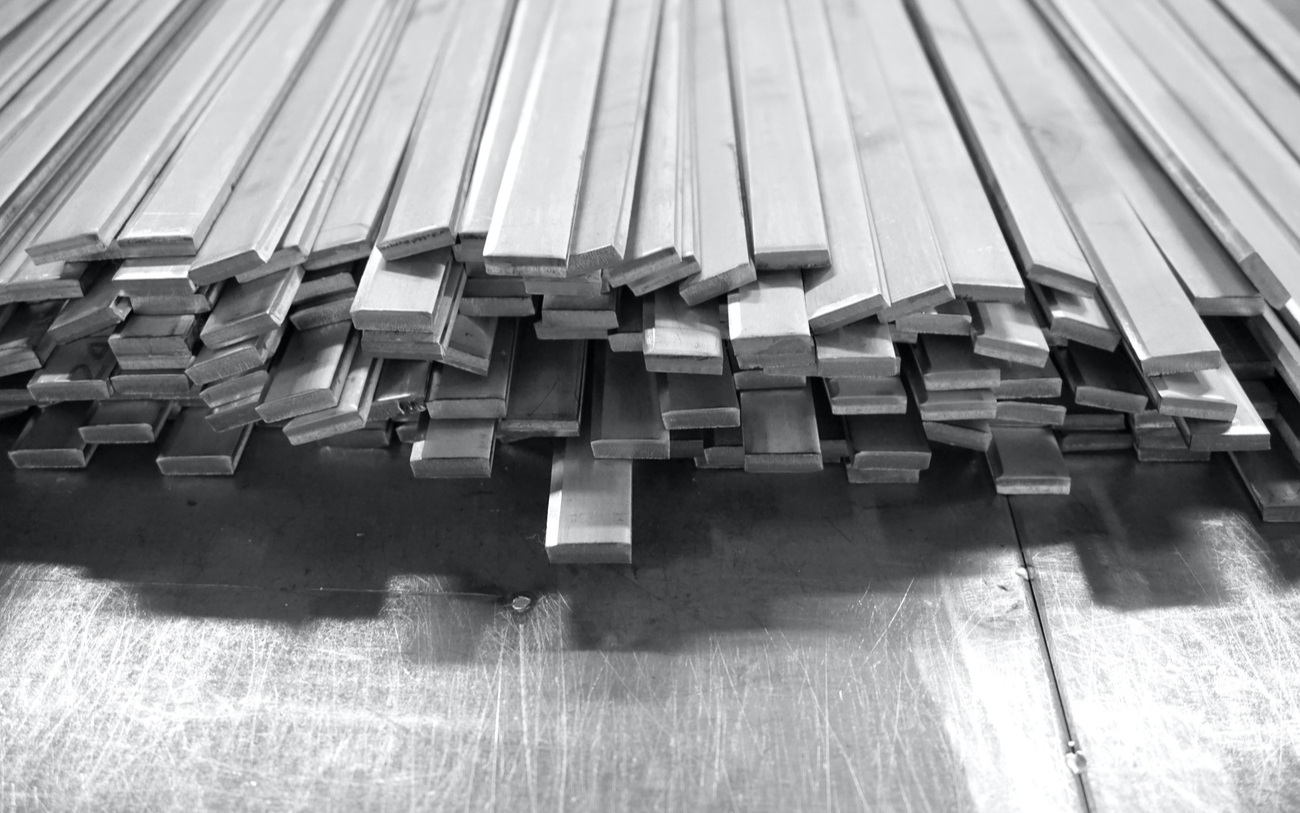

Solera de acero al carbón laminada en caliente, disponible en una gran variedad de espesores y anchos. Fabricada bajo norma ASTM A‑36; se ofrece también en calidades de alta resistencia (A‑572‑50) bajo pedido. Ideal para refuerzos, placas base, herrería y componentes estructurales ligeros.
Presentación
- Largos estándar: 6.10 m (20 ft) y 12.20 m (40 ft).
- Servicio de corte a la medida y barrenado CNC opcional.
- Suministro en tramos o piezas sueltas con acabado negro o galvanizado.
Usos
- Placas base y placas de anclaje
- Refuerzos de vigas, columnas y sistemas de soporte
- Fabricación de barandales, portones y herrería arquitectónica
- Componentes para remolques, racks y maquinaria
Caracteristicas
- Espesores y anchos calibrados para tolerancias estrechas
- Excelente soldabilidad, maquinabilidad y conformado en frío
- Buen comportamiento a la carga axial y flexión
- Compatible con procesos de galvanizado y recubrimientos industriales
